Limit Switches

A limit switch is characterized as an electromechanical device that combines an actuator mechanically linked with an electrical switch. Limit switches work as a control device powered by the motion of an object. In short, limit switches monitor the movement of other objects.

A mechanical limit switch offers high precision in regard to accuracy and repeatability. Contact sensors are used for detecting both the presence of and the position of objects in industrial operations.

Limit switch types generally fall into four categories: a whisker, a roller, a lever, or a plunger. They are configured as normally open, normally closed, or a combination of both. For some applications, limit switches have been replaced by proximity sensors.

When something makes contact with the limit switch lever (or plunger), this lever will move a pre-travel distance to the point where the contacts are activated. Over-travel is when the lever moves beyond the point.

Limit Switch Specifications

Because limit switches are dedicated to a very specific operation, each needs to be calibrated for the application. Review the following parameters to evaluate the compatibility of a limit switch for the application you have in mind.

• Enclosure Die-Cast Aluminum: O-ring sealed
  • Optional 304 and 316 Stainless Steel construction
• Coating: Polyester Powder Coating (Std)
• O-rings Buna N(Standard) -25℃-85℃ (Std)
• Environment Type 4, 4X, IP67,
  • Explosion Proof Cl 1 Zone 1, Ex d IIC T6 Gb
• Area Classification Nema 4, Nema 7
• Fasteners Stainless steel
• Shaft Stainless steel Namur

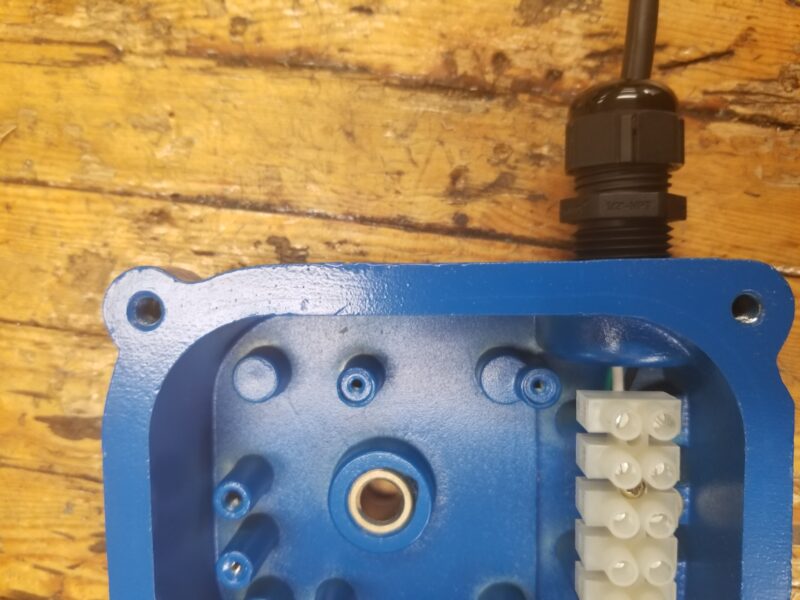

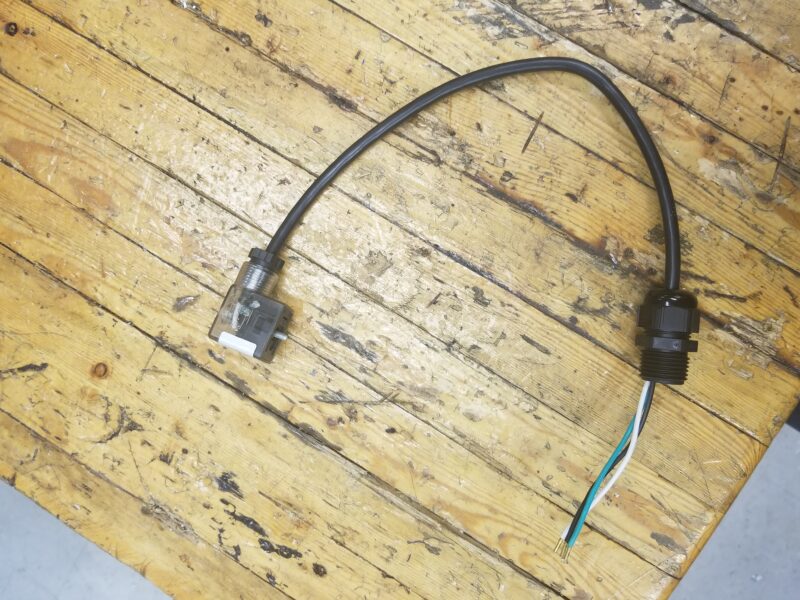

• Two ½” NPT
• Terminal Strip Contacts 8
• Operating Voltage: 120VAC, 12VDC, 24 VDC
• Mounting Bracket MB – 3.4: 30 x 80, 130 H:20, 30 (Stainless Steel)
• Temperature Rating -20℃-85℃
• Sensor: CROUZET Mechanical Switches Standard, Proximity Switches (Optional)
• Model No.: IP-67(N4), ALS-500M (Exp Proof)

Switch Response Behavior in Industrial Motion Control

Limit switches support predictable response behavior in systems where mechanical movement must be monitored with precision. Their internal contact mechanisms activate at defined travel points, helping maintain alignment with industrial motion control used in automated equipment, conveyors, and valve assemblies. Stable response behavior supports consistent feedback to control panels, reducing the likelihood of unintended travel or misalignment during operation. This reliability is important in environments where equipment cycles frequently or where position accuracy influences overall process performance.

Mechanical Interaction and Contact Stability

Mechanical limit switches rely on controlled interaction between the actuator and the internal contact assembly. When the lever, roller, whisker, or plunger is engaged, the switch transitions through pre-travel and over-travel ranges to activate the electrical contacts. This controlled interaction supports mechanical position sensing in systems where physical contact provides dependable feedback. Stable contact behavior helps maintain repeatability across extended service intervals, supporting reliable operation in industrial environments that experience vibration, temperature changes, or continuous movement.

Environmental Performance in Demanding Conditions

Limit switches often operate in environments where moisture, dust, chemicals, or temperature variations influence equipment behavior. Die-cast aluminum housings, stainless steel components, and sealed O-rings help maintain structural stability and protect internal contacts from environmental exposure. This performance supports environmental equipment resilience in applications requiring NEMA 4, NEMA 7, or IP67 ratings. Explosion-proof models support additional protection in classified areas where ignition sources must be controlled.

System Compatibility Factors

Facilities evaluating limit switch compatibility often consider:

• Mounting interface requirements
• Electrical signal type
• Environmental rating needs
• Actuator style selection

These factors help ensure the switch matches the mechanical movement, electrical system, and environmental conditions present in the application. Proper compatibility supports stable sensing behavior and long-term reliability.

Control Accuracy in High-Cycle Applications

High-cycle applications require limit switches that maintain consistent accuracy across frequent mechanical movements. The available mechanical and proximity-based sensing options support dependable performance in systems that operate continuous or rapid cycles. Controlled travel ranges and stabilized internal contacts help maintain repeatability in high-cycle sensing applications where position accuracy influences overall process efficiency. This stability supports reduced maintenance requirements and predictable long-term behavior.

FAQs

How Does Mechanical Travel Influence Limit Switch Activation?

Mechanical travel determines when the internal contacts transition from inactive to active. Controlled pre-travel and over-travel ranges support predictable activation behavior.

What Factors Affect Environmental Performance in Limit Switches?

Housing material, sealing components, and enclosure ratings influence environmental performance. Proper protection helps maintain stable operation in demanding conditions.

Can Limit Switches Integrate with Different Actuator Styles?

Yes. Lever, roller, whisker, and plunger styles support compatibility with varied mechanical movements found in industrial systems.

Why Is Repeatability Important in Position Sensing Applications?

Repeatability supports consistent feedback to control systems, helping maintain predictable equipment movement and reducing the likelihood of misalignment.
